SPECIALISTS IN SHEET METAL
HVAC DUCTING
#DW144
HVAC SHEET METAL DUCTWORK
HVAC ducting is an essential component of any HVAC system. Pinnacle are specialists in sheet metal HVAC ductwork fabrication and have been supplying high quality DW144 compliant rectangular ducting for over 30 years.
All rectangular ducting (or box ducting) for HVAC systems is fabricated to order at our Havant workshop and we provide pricing based on drawings on a project by project basis.
If you’d like to discuss your sheet metal ductwork supply for heating, ventilation and air conditioning systems, give us a call or request a quotation below.
PRODUCT RANGE
RECTANGULAR BOX DUCT
Our HVAC rectangular and box ducting is available in galvanised and stainless steel and includes all of the key component parts including but not limited to;
- Lengths
- Square Bends
- Tapers
- Rounds
- Offsets
- Square to Ovals
- Lined Plenum Boxes
- Linear Plenums
- Grille Boxes
SHEET METAL DUCTING
RECTANGULAR BOX DUCT
We fabricate ducting and components to your drawings and requirements and have experience in residential, commercial and industrial systems.
OUR WORK

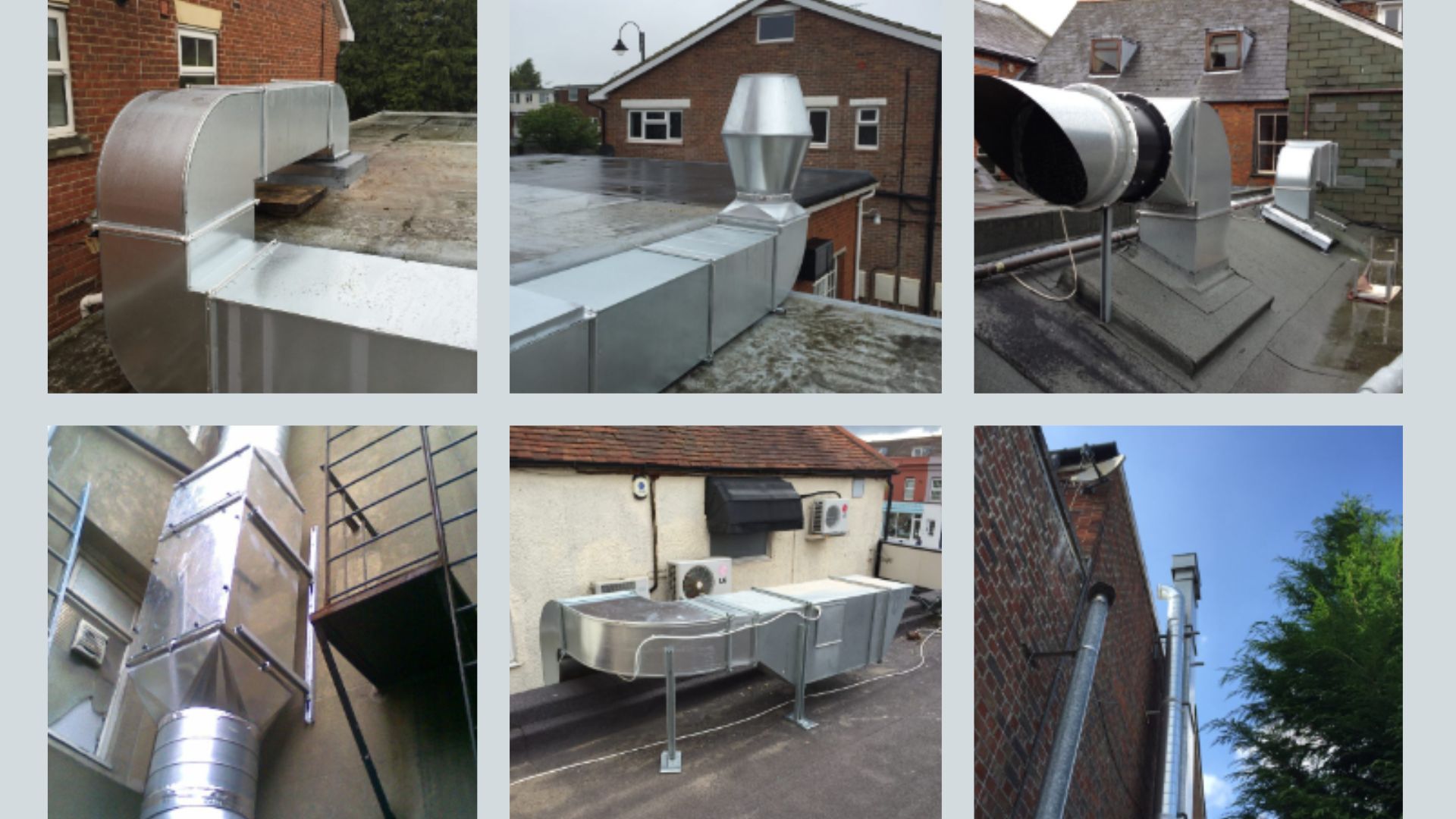

HVAC RECTANGULAR & BOX DUCTWORK FOR COMMERICAL KITCHENS
We have supplied countless clients with ductwork for Heating, Ventilation and Air Conditioning (HVAC) systems for residential, commercial and industrial applications – all made to order based on size and specification requirements.
Always manufactured to DW144.
WORKING WITH PINNACLE DUCTWORK MANUFACTURERS
OUR WORK
RESIDENTIAL BOX DUCT FOR MVHR SYSTEMS
Bespoke 300mm x 100mm sheet metal duct manufactured for MVHR ventilation systems to provide higher airflows in 800 residential dwellings that were are risk of overheating.
OUR WORK
COMMERICAL HVAC SYSTEM

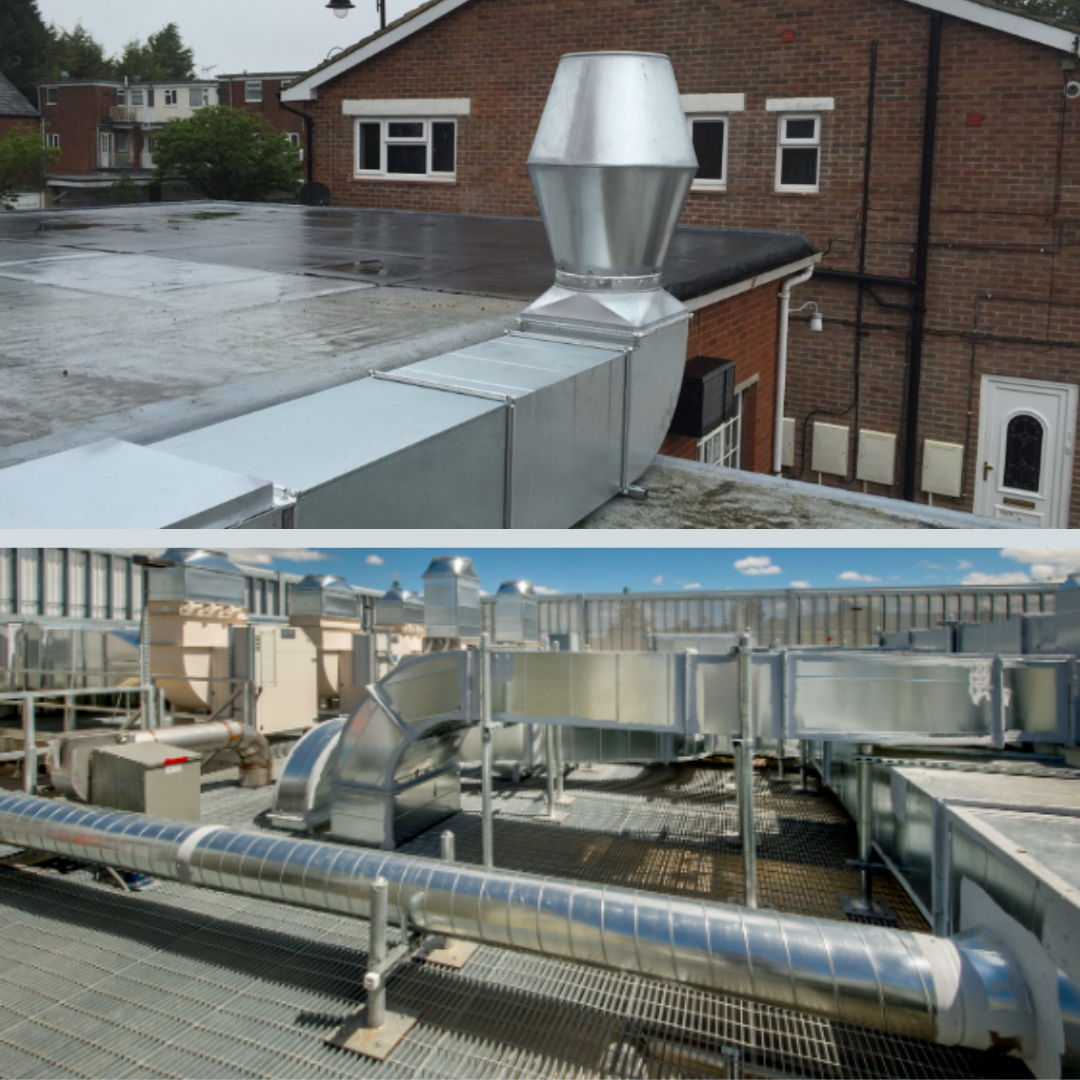

Rectangular ducting and a jet cowl termination manufactured for a commercial HVAC system for a client based in Portsmouth on the South Coast.
OUR WORK
NEW AMAZON WAREHOUSE
We manufactured and supplied sheet metal ducwork for the new HVAC system at a brand new Amazon warehouse located just a stones throw from our Havant based wokshop
YOUR ONE STOP HVAC SUPPLIES SHOP
Competitive Prices and Next Day Delivery available on a range of HVAC supplies
Spiral Ducting
PVC Ducting
Flexible Ducting
Fixings & Accessories
Grilles
Air Valves
Attenuators
Fire Dampers
SHEET METAL DUCT DW144
Pinnacle are specialists in HVAC ductwork, fabricating high quality sheet metal ductwork to DW144 standards which is the specific requirement for the manufacture and installation of sheet metal ductwork used in heating, ventilation and air conditioning systems. DW144 covers sheet metal ducting for rectangular and circular ductwork made from galvanised steel, stainless steel or aluminium.
The standard defines the minimum material thickness, jointing methods, and manufacturing tolerances required for ductwork re intended to ensure that the ductwork is safe, durable, and capable of providing the required level of performance for its intended use. The standard covers a range of ductwork applications, from low-pressure ventilation systems to high-pressure air conditioning systems
