ResiDUCT™

ResiDUCT offers a simple solution for residential ventilation ducting used with MVHR or MEV systems where higher ventilation rates are required due to overheating and air quality planning conditions and restrictions.

ResiDUCT™

A1 Non Combustible Ducting

A1 Rated Non-Combustible ducting is manufactured from 0.9mm hot dipped galvanised mild steel and provides A1 classification for the ductwork terminating through the façade of the building.

A1 Non Combustible

ResiDUCT - An innovative ducting solution

ResiDUCT™  is designed to meet the increasing market demand for superior airflow performance and energy efficiency in residential homes.

The ducting offers a simple solution for MVHR systems where higher ventilation rates are required due to overheating and air quality planning conditions.

With a low profile design and larger cross sections area, ResiDUCT™ provides increased flow rates whilst retaining suitable dimensions for residential applications. Innovative and unique design features allow signifcant improvements in installed performance and energy efficiency.

ResiDUCT™ Product DataSheet
ResiDUCT - An innovative ducting solution


Why ResiDUCT?

ResiDUCT provides excellent ventilation and meets modern building standards:

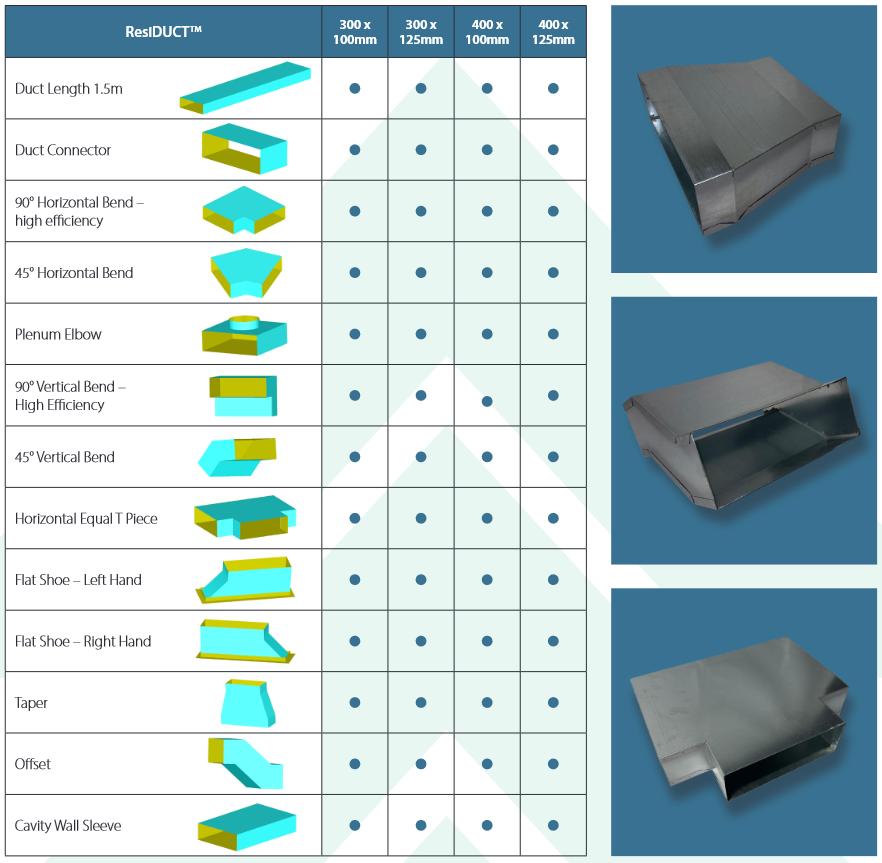

The ResiDUCTTM range is a high-performance, duct range suitable for use with residential ventilation
systems including MVHR and MEV

• All parts are made to order based on client drawings and specifications
• Manufactured to DW144 Standards
• Also available to meet A1 Non Combustible Duct Performance Criteria

Request A Quote

Space Saving & High Performance

ResiDUCT™ allows higher MVHR airflow requirements to be achieved in typical residential ceiling voids:

300 x 100mm = 180mm Ø
400 x 100mm = 205mm Ø
300 x 125mm = 200mm Ø
400 x 125mm = 230mm Ø

Onsite Speed & Savings

ResiDUCT™ is signficantly quicker to install that typical metal ductwork used in residential applications, helping to reduce onsite installation costs.

Where overheating demands higher airflow performance, ResiDUCT™ is an ideal solution for MVHR (Heat Recovery) Ventilation Systems.


ResiDUCT™- Made to Order


Residential Duct For High Airflow Systems

Large Batch Production

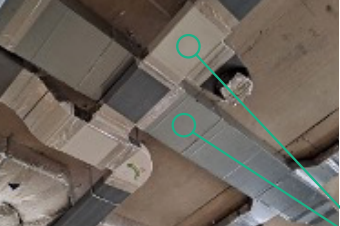

We supplied metal 300 x 100mm ductwork for 800 dwellings at a new build development in Acton London where MVHR Heat Recovery system were being installed.

Due to overheating, higher airflow rates needed to be achieved, however ceiling voids were restricted. The 300 x 100mm ducting (not available in plastic) was the perfect solution to meet performance and installation requirements.

Residential Duct For High Airflow Systems


Made to Order Duct

Like all HVAC ducting, all A1 non combustible components are made to order based on drawings provided for the project.

Send us your drawings and we can discuss the project in more detail.  We have supplied many large scale residential projects in London with standard and A1 ResiDUCT™.


A1 Rated Airbrick

A1 Fire Rated classification Airbricks are used in conjunction with A1 non-combustible ducting for residential ventilation systems (MVHR) terminations.

Pinnacle Ductwork are an approved re-seller of the market leading Domus Solis A1-rated airbrick , offering a full A1 duct/termination solution for your requirements.
